iOS App Pen Testing: Harnessing the Power of r2frida for Runtime Manipulation

You might already know a fair bit about r2frida by now - its definition, usage, features, installation, and examples - something we discussed in the previous blog of this series.

In case you missed out on it, you can find it here.

In this blog, we will explore how r2frida can be instrumental in manipulating an iOS app's runtime.

Loading an iOS Application for analysis

Today, we'll Look into the analysis of the DVIA-v2 (Damn Vulnerable iOS Application) and use the power of r2frida to complete the login challenge through runtime manipulation. First off, I will need to install the DVIA-v2 application on my device. I will use a tool called ios-deploy to install the ipa file onto the device. It is good practice to have AppSync Unified installed on the device if you want to deal with app signing issues, as it bypasses Installd's signature checks.

Let's use frida-ps to get the list of apps installed on the iOS device.

frida-ps -Uai

When executing the command frida-ps -Uai, you will receive essential information such as the active and installed application's Process ID (PID), name, and identifier.

Once we obtain the application identifier, we can proceed to spawn the application using r2frida for further analysis.

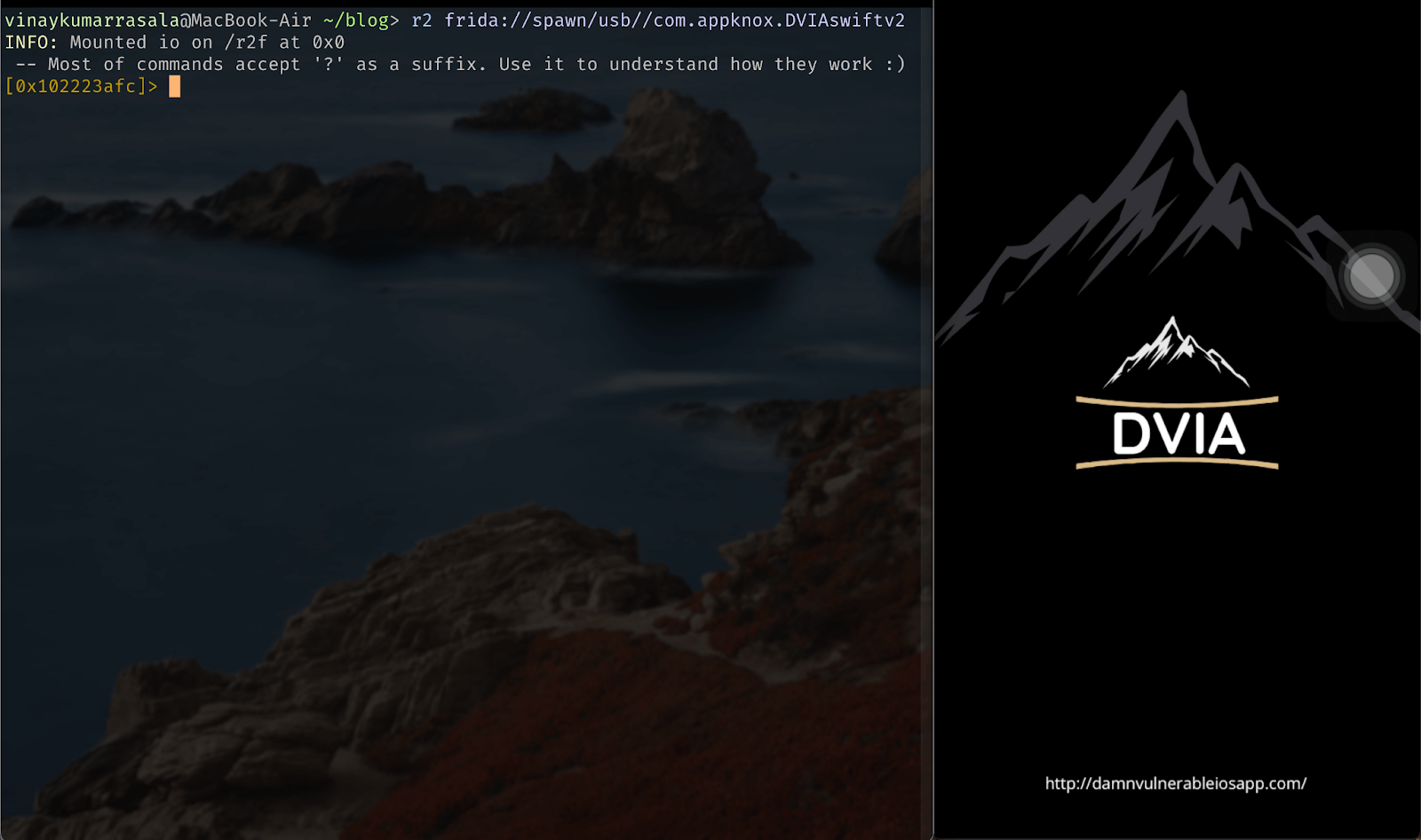

r2 frida://spawn/usb//com.appknox.DVIAswiftv2

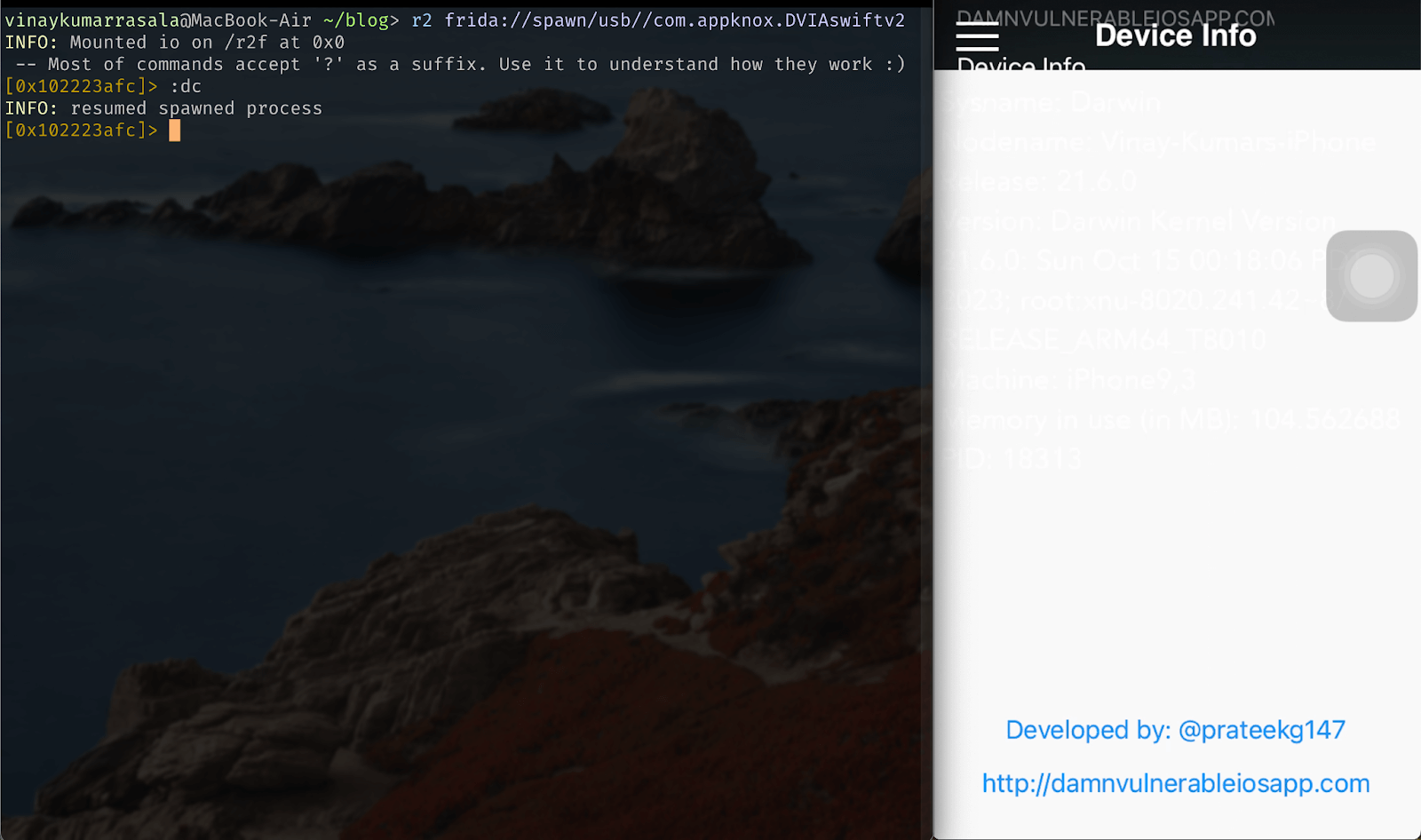

Executing this command spawns the application and pauses its execution flow. To resume the application's execution, enter the :dc command in the r2frida session.

Furthermore, the :i command helps obtain information about the target (pid, name, home, arch, bits, etc.).

Analyzing the login challenge

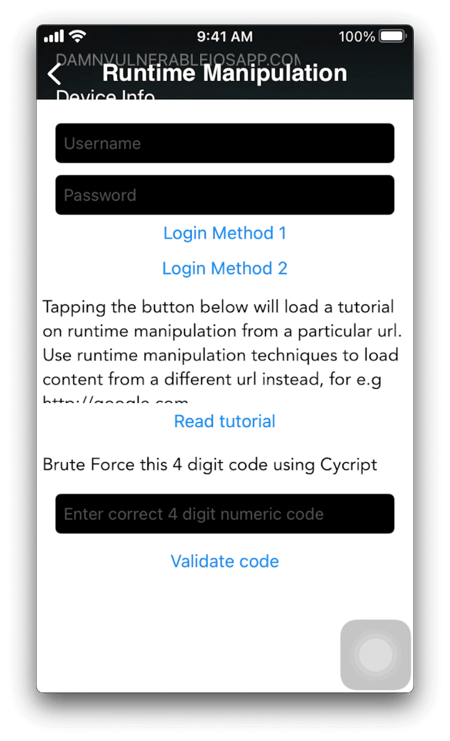

If you go to the "Runtime Manipulation" portion of the DVIA application, you will see the login challenge. This challenge has an easy-to-use interface with two kinds of login buttons and fields for entering a username and password.

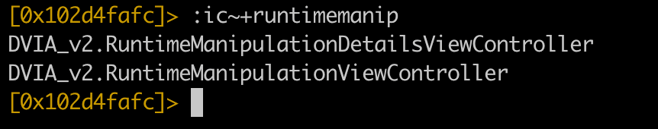

To analyze the classes for this challenge, you can list the classes in the application with the :ic command. To narrow down the results, use the filter :ic~+String. Let's check the classes related to the runtime manipulation challenge by filtering the classes list with :ic~+runtimemanip

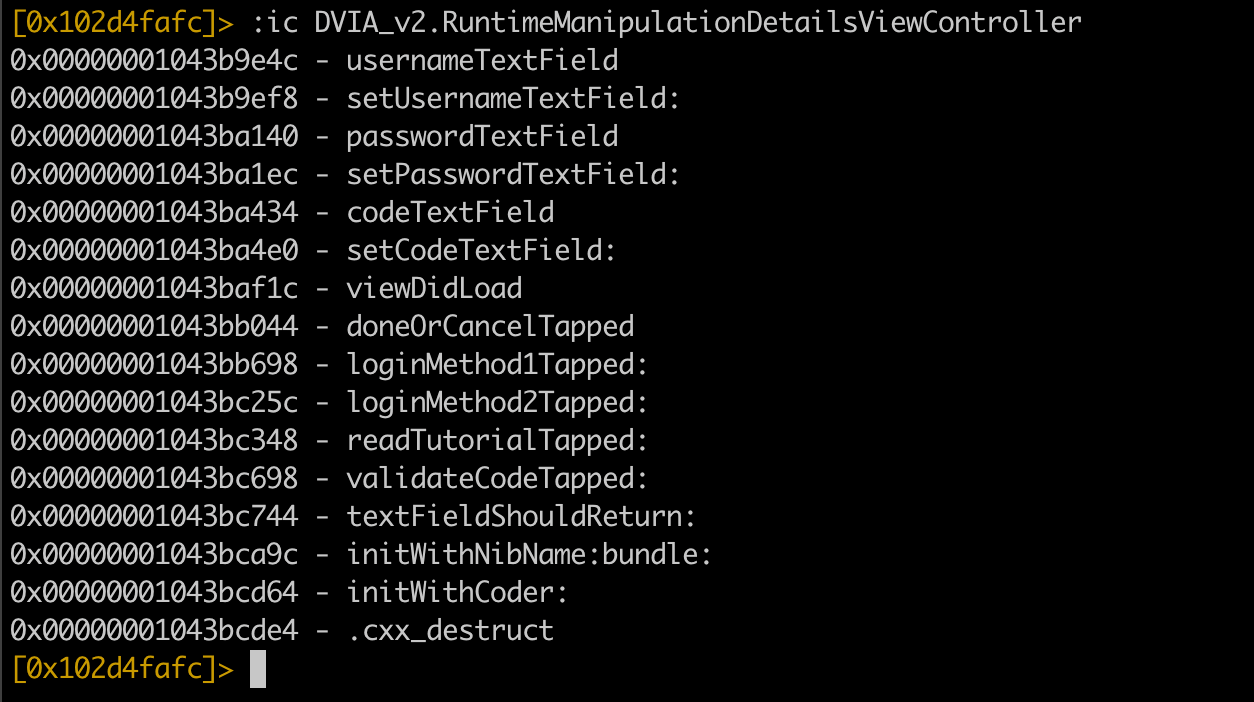

As you can see, there is a class called DVIA_v2.RuntimeManipulationDetailsViewController. Let's check the methods in the class, so running :ic DVIA_v2.RuntimeManipulationDetailsViewController gives the list of methods present in the class.

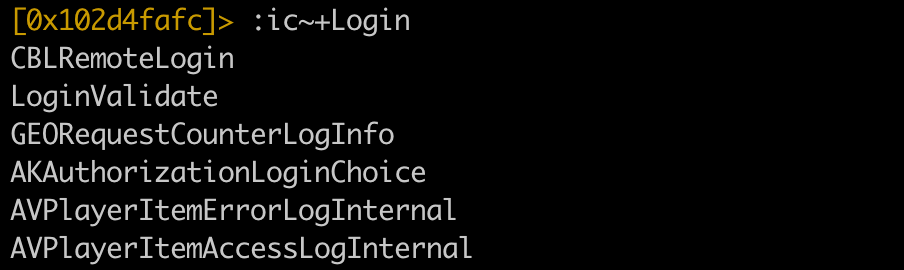

This class doesn't contain any methods related to validating the login, so we can ignore this class and check other class names related to the login challenge. Let's check if there are any classes with names having a login.

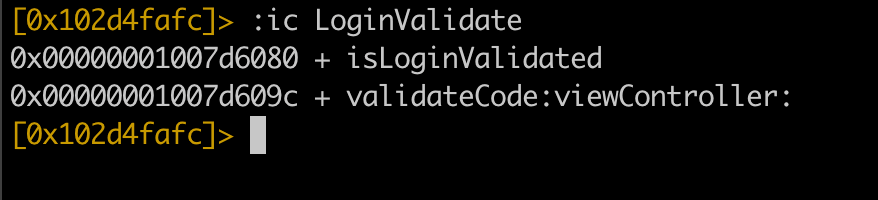

As you can see, there is a LoginValidate class. This could be responsible for the logic of the login challenge. Let's check if there are any methods to check the login validation.

The LoginValidate class has a method named isLoginValidated. Let's confirm if this method really checks the validation of the login challenge by tracing the method using :dtf command. As observed in the earlier section, the address of isLoginValidated is represented by 0x00000001007d6080. The following command can be executed to trace the execution of this method.

:dtf 0x00000001007d6080

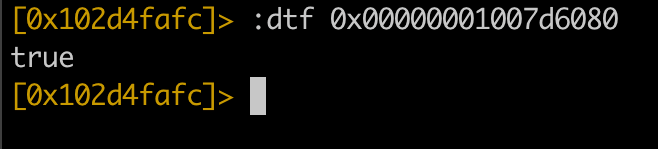

This command returns a true response, which means it is executed correctly. Now, let's enter the wrong credentials and try to log in using Login method 1.

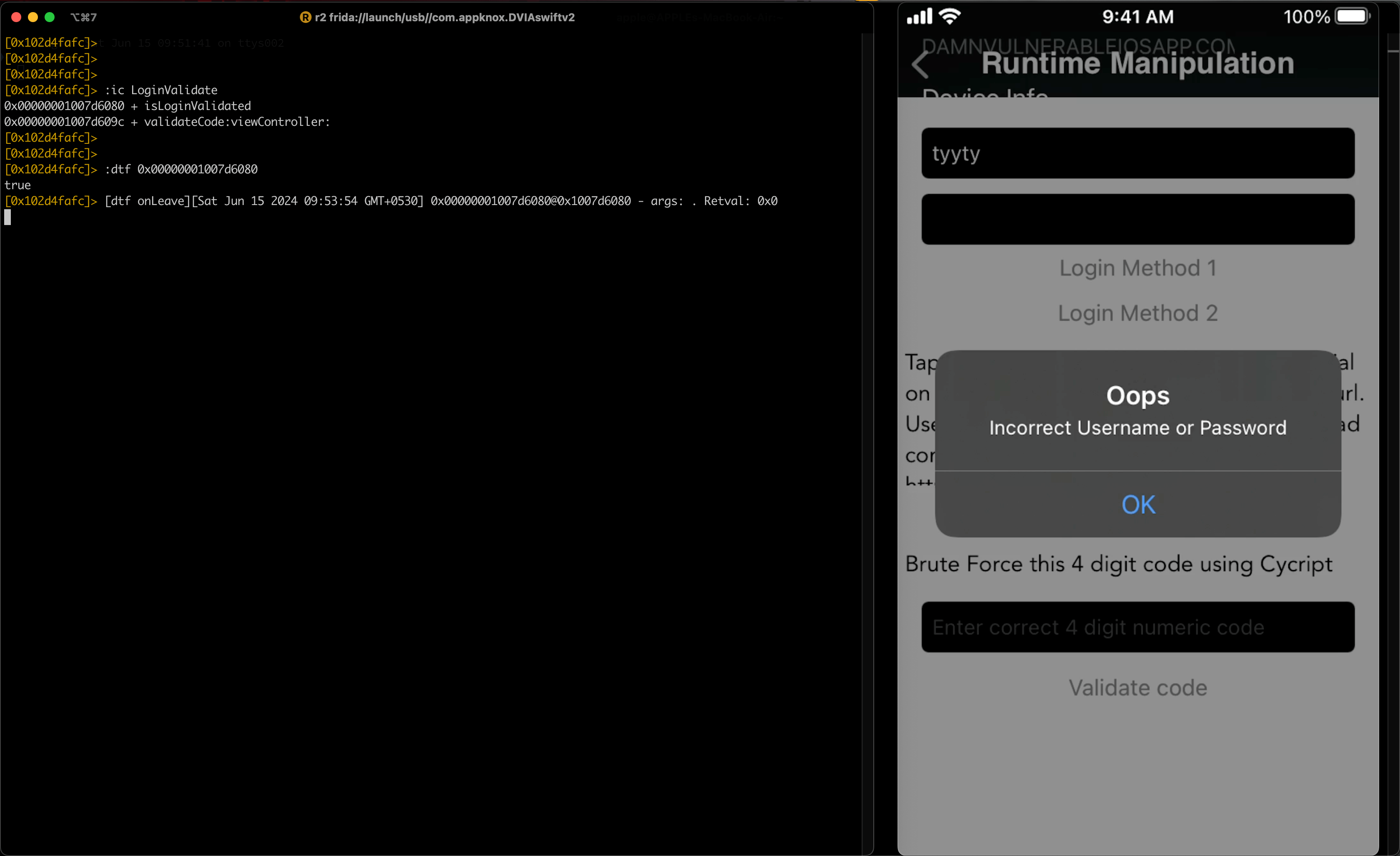

As you can see, the trace command returned 0x0, which means the login failed due to incorrect credentials.

Hooking with r2Frida

Now we know that the isLoginValidated method returns 0x0 for incorrect credentials. With all the info we need, we can easily play around with the isLoginValidated method. By changing the return value to 0x1, we can make the app think the wrong credentials are correct. There are two ways we can modify the return value of a method. The first one uses Frida Interceptor API, and the other one uses the r2frida command :dif

The Interceptor API allows us to easily hook functions or code sections provided they have a valid memory address. It takes NativePointers matching the target function address and lets us attach them to some interesting callbacks onEnter and onLeave.

:eval Interceptor.attach(ptr(0x00000001007d6080), {onLeave: function (retval) {retval.replace(0x1)}})

Are you wondering what this command does? We're using the :eval command in r2frida to run JavaScript code. This JavaScript code hooks into the function at a specific memory address (0x00000001007d6080). When this function finishes running, it changes the function's return value to 1 before it actually returns.

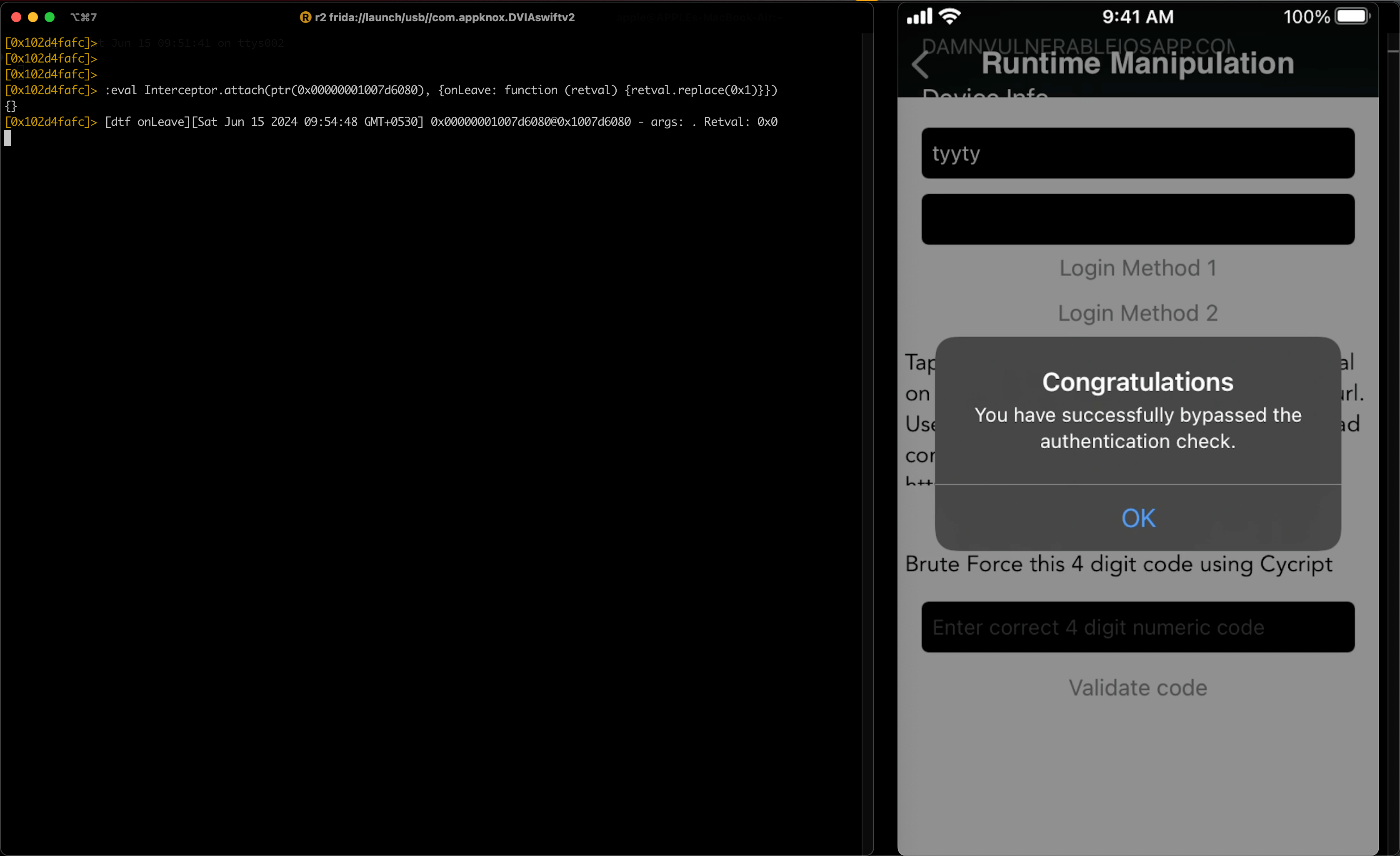

Again, log in with the wrong credentials and observe the r2frida. The return value is changed to 0x1, making the login a success.

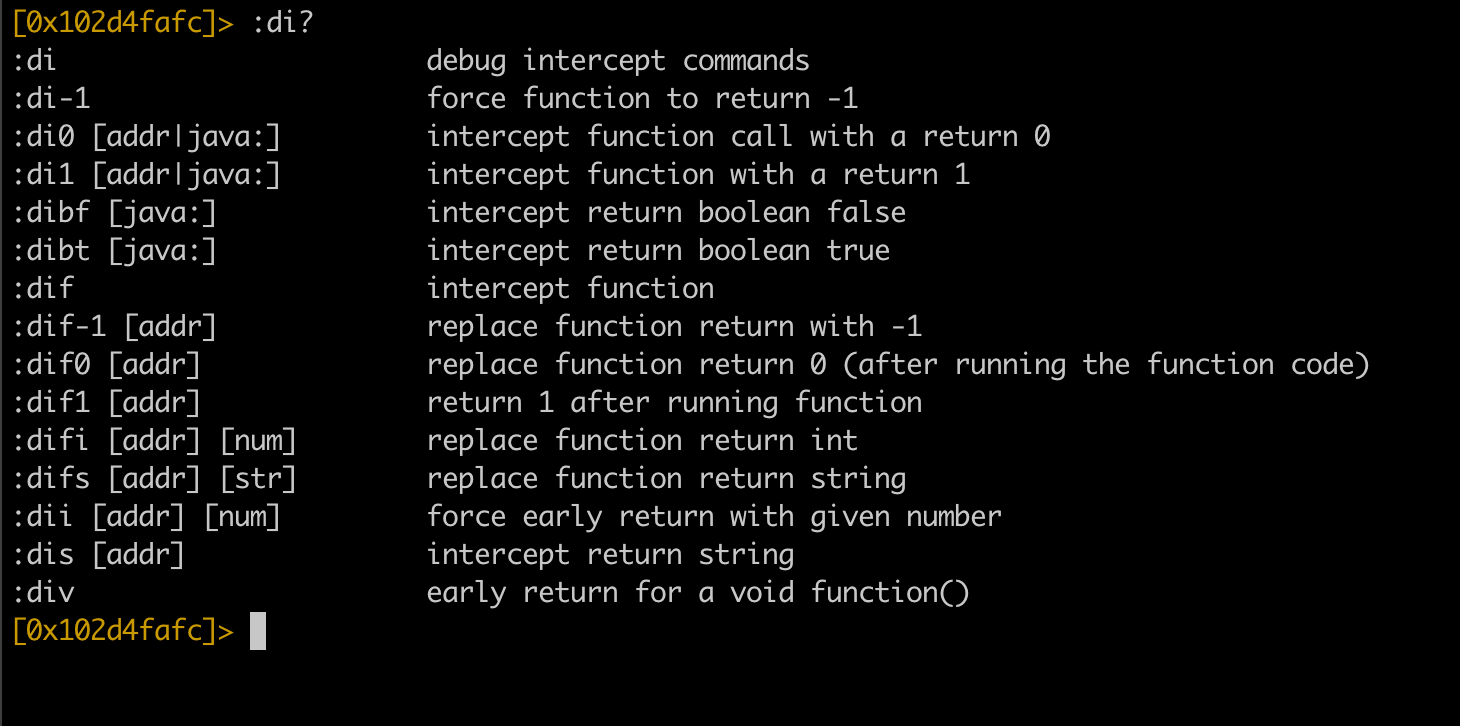

So, using :eval to run javascript code with interceptor API, we were able to bypass the login challenge. Let’s look into another way to change the return value of a function using the r2frida inbuilt command :dif

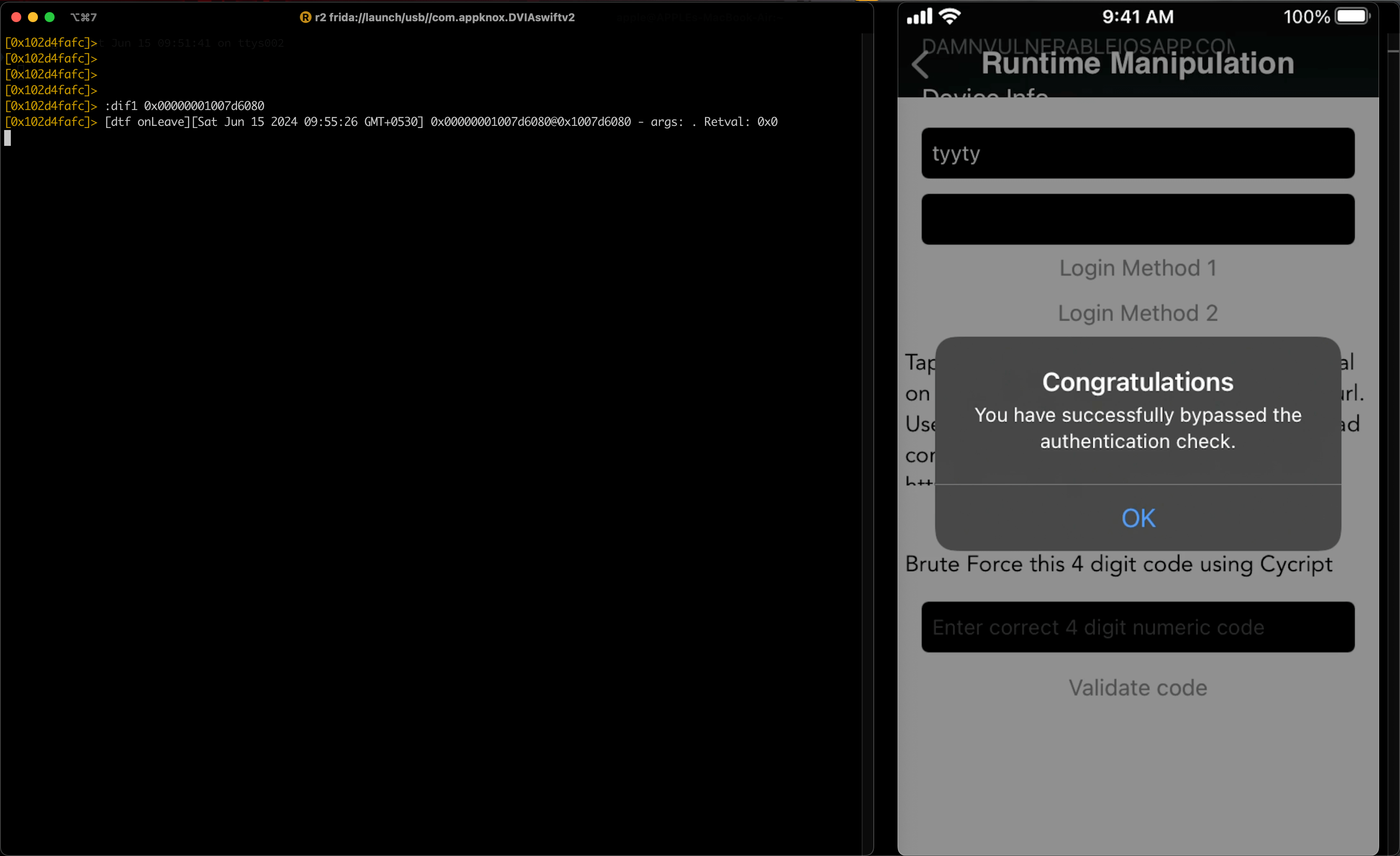

Using :dif1, we can replace the function return value with 1 and bypass the login challenge.

And there you have it: we successfully bypassed the login challenge using two methods.

Conclusion

As we draw the curtains on our exploration of r2frida, it's evident that this tool is a force to be reckoned with in iOS security. By seamlessly blending static analysis and dynamic instrumentation techniques, r2frida empowers researchers to uncover vulnerabilities and strengthen defenses. So, here's to harnessing the power of r2frida and making our digital world a safer place, one app at a time.
